Sophisticated, Stylish, Spacious, and Safety Obsessed
New for 2024
New Exterior Colors
- Midnight Sky Metallic
- Emerald Lake Metallic
There is also a few Styling Packages that are available on the Sport Trim (Blue Accent, Bronze Accent, and Red Accent).
Model Details
Performance & Engine
The XT6 has a driver mode selector that allows the driver to choose between Tour, Sport, and Snow/Ice modes. Tour mode is for everyday driving, while Sport mode provides a more responsive driving experience. Snow/Ice mode is for driving in slippery conditions.
The XT6 also has performance braking, which provides shorter stopping distances.
Overall, the 2024 Cadillac XT6 is a well-rounded SUV with a powerful engine and a variety of performance features.

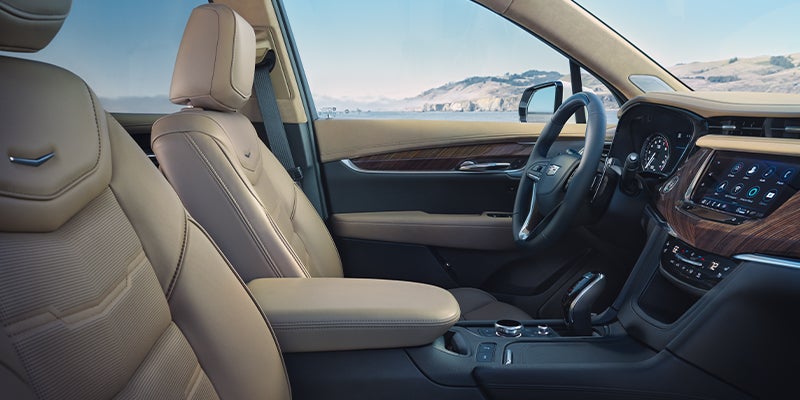

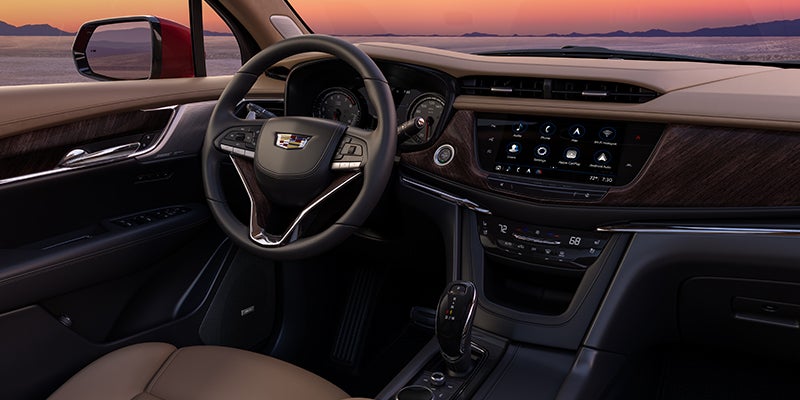

Interior
The Platinum package adds even more luxury to the XT6's interior, with features like a heated steering wheel, Semi-Aniline leather, and exclusive interior dƩcor.
Overall, the 2024 Cadillac XT6 offers a well-appointed and comfortable interior that is sure to please even the most discerning buyers.
Technology
Here are some of the key technology features of the 2024 Cadillac XT6:
- Cadillac Smart System suite of safety and driver assistance features
- Super Cruiseā¢ driver assistance technology
- Night Vision System
- Head-up display
- Wireless charging
- Bose sound system
- Rear-seat entertainment system
The 2024 Cadillac XT6 is a technologically advanced SUV that offers a variety of features to help drivers stay safe and connected on the road.
XT6 Trims
Luxury
- 7-passenger seating
- Cadillac Smart System* suite of safety and driver assistance features
- Heated front seats
Premium Luxury
- 3.6L V6 engine
- Exclusive 20" split 6-spoke alloy wheels with Polished Android finish
- Cadillac user experience with navigation* and Bose* Performance Series 14-speaker audio system
Sport
- Interior and exterior uniquely designed sport elements
- Performance suspension with Driver Mode Selector
- BremboĀ® performance front brakes with painted red front and rear brake calipers
2024 CADILLAC XT6 SPECIFICATIONS (NORTH AMERICA) (click to expand)
EPA-EST. MPG
CITY HWY
2.0L Turbo |
Not yet available |
Not yet available |
3.6L V-6 |
Not yet available |
Not yet available |
FUEL TANK CAPACITY (APPROX)
19 gal. / 71.9 liters (FWD) |
ENGINES
Type: |
2.0L Turbocharged I4 DOHC VVT with Direct Injection and automatic stop/start |
Bore & Stroke (in. / mm): |
3.26 x 3.63 / 83 x 92.3 |
Block Material: |
Cast aluminum |
Cylinder Head Material: |
Cast aluminum |
Valvetrain: |
Dual overhead camshafts, four valves per cylinder with tripower system |
Fuel Delivery: |
Direct injection with electronic throttle control |
Horsepower |
235 / 175 @ 5000 (SAE certified ā with premium fuel) |
Torque (lb.-ft. / Nm): |
258 / 350 @ 1500-4000 (SAE certified ā with premium fuel) |
Type: |
3.6L V6 DOHC VVT with Direct Injection and automatic stop/start |
Bore & Stroke (in / mm): |
3.74 x 3.37 / 95 x 85.8 |
Block Material: |
Cast aluminum w/ cast-in-place iron bore liners |
Cylinder Head Material: |
Cast aluminum |
Valvetrain: |
Dual-overhead camshafts, four valves per cylinder, continuous variable valve timing |
Fuel Delivery: |
Direct, high-pressure fuel injection with electronic throttle control |
Horsepower |
310 / 231 @ 6700 |
Torque (lb.-ft. / Nm): |
271 / 367 @ 5000 |
TRANSMISSION & AXLE
Type: |
Nine-speed automatic with Electronic Precision Shift |
Final Drive Ratio: |
3.47 (2.0L) |
CHASSIS & SUSPENSION
Front Suspension: |
MacPherson strut with direct-acting stabilizer bar; Continuous Damping Control with Sport model (available on Premium Luxury with Platinum Package) |
Rear Suspension: |
Five-link independent; coil springs with stabilizer bar; Continuous Damping Control with Sport model (available on Premium Luxury with Platinum Package) |
Steering Type: |
Variable-assist rack-and-pinion with rack-mounted, belt-driven electric assist |
Steering ratio: |
16:1 (standard Luxury, Premium Luxury |
Turning Circle (ft. / m): |
38.7 / 11.8 |
Brake Type: |
Four-wheel-disc with ABS |
Brake Rotor Size |
Front: 12.6 x 1.9 / 321 x 30 |
Wheel Size: |
18-in. aluminum (Luxury) |
Tire Size: |
P235/65R18 all-season (Luxury) |
EXTERIOR DIMENSIONS
Wheelbase (in. / mm): |
112.7 / 2863 |
Overall Length (in. / mm): |
198.5 / 5042 |
Overall Width (in. / mm): |
77.3 / 1963 |
Overall Height (in. / mm): |
69.9 / 1775 (w/o luggage rack) |
Track (in. / mm): |
66.4 / 1687 (front) |
Ground Clearance (in. / mm): |
6.65 / 169 |
INTERIOR DIMENSIONS
Headroom (in. / mm): |
Front: 39.8 / 1011 (with sunroof) |
Legroom (in. / mm): |
Front: 41.2 / 1046 |
Shoulder Room (in. / mm): |
Front: 58.3 / 1481 |
Hip Room (in. / mm): |
Front: 50.1 / 1273 |
CURB WEIGHT, CARGO VOLUME & TRAILERING
Curb Weight (lb. / kg): |
4362 / 1979 (Luxury FWD) |
Cargo Volume |
78.7 / 2228.8 (behind first row) |
EPA Passenger Volume (cu. ft. / L): |
149.9 / 4245 |
Trailering Capacity (lb. / kg)2: |
1000 / 454 (2.0L) |
1Cargo and load capacity limited by weight and distribution.
2Before you buy a vehicle or use it for trailering, carefully review the Trailering section of the Ownerās Manual.
DRIVER SUPPORT & CONNECTIVITY TECHNOLOGIES
LUXURY |
PREMIUM LUXURY |
SPORT |
|
Cadillac user experience1 with Personalization |
Standard |
NA |
NA |
Cadillac user experience1 with Personalization and embedded Navigation2 |
NA |
Standard |
Standard |
8-inch-diagonal color touchscreen |
Standard |
Standard |
Standard |
Rotary controller with jog functionality |
Standard |
Standard |
Standard |
Cloud-based3 natural voice recognition |
Standard |
Standard |
Standard |
8-inch-diagonal color instrument cluster |
NA |
Available |
Available |
Six USB ports5 |
Standard |
Standard |
Standard |
Teen Driver |
Standard |
Standard |
Standard |
Two years of OnStarĀ® Safety & Security, with services including Automatic Crash Response and Stolen Vehicle Assistance |
Standard |
Standard |
Standard |
Wi-FiĀ® hotspot (includes 3GB or three months of data, whichever comes first)6 |
Standard |
Standard |
Standard |
Wireless Apple CarPlay7 and Android Auto 8 for compatible smartphones |
Standard |
Standard |
Standard |
Cadillac Connected Access9 |
Standard |
Standard |
Standard |
1Infotainment system functionality varies by model. Full functionality requires compatible Bluetooth and smartphone, and USB connectivity for some devices.
2Map coverage available in the U.S., Puerto Rico and Canada.
3Requires active service plan. Services are subject to user terms and limitations and vary by vehicle models. Visit onstar.com for details. Availability subject to change.
4The system wirelessly charges one compatible mobile device. Some phones have built-in wireless charging technology and others require a special adaptor/back cover. To check for phone or other device compatibility, see my.cadillac.com/learn or consult your carrier.
5Not compatible with all devices
6Service varies with conditions and location. Requires active service plan and paid AT&T data plan. Visit onstar.com for details and limitations.
7Vehicle user interface is a product of Apple and its terms and privacy statements apply. Requires compatible iPhone and data plan rates apply. Apple CarPlay is a trademark of Apple Inc. Siri, iPhone and Apple Music are trademarks for Apple Inc, registered in the U.S. and other countries.
86Vehicle user interface is a product of GoogleTM and its terms and privacy statements apply. Requires the Android Auto app on Google Play and a compatible AndroidTM smartphone. Data plan rates apply. You can check which smartphones are compatible at g.co/androidauto/requirements. Android Auto is a trademark of Google LLC.
9Limitations apply. Not transferable. Standard connectivity available to original purchaser for 10 years from the date of initial vehicle purchase for model year 2018 or newer Cadillac vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enable by Connected Access are subject to change.
DRIVER ASSISTANCE TECHNOLOGIES
LUXURY |
PREMIUM LUXURY |
SPORT |
|
Automatic Emergency Braking1 |
Standard |
Standard |
Standard |
Following Distance Indicator1 |
Standard |
Standard |
Standard |
Forward Collision Alert1 |
Standard |
Standard |
Standard |
Front Pedestrian Braking1 |
Standard |
Standard |
Standard |
Front and Rear Park Assist1 |
Standard |
Standard |
Standard |
HD Rear Vision Camera1 |
Standard |
Standard |
Standard |
IntelliBeam automatic high beam1 |
Standard |
Standard |
Standard |
Lane Keep Assist with Lane Departure Warning1 |
Standard |
Standard |
Standard |
Lane Change Alert with Side Blind Zone Alert1 |
Standard |
Standard |
Standard |
Teen Driver |
Standard |
Standard |
Standard |
Rear Seat Reminder |
Standard |
Standard |
Standard |
Rear Cross Traffic Alert1 |
Standard |
Standard |
Standard |
Safety Alert Seat |
Standard |
Standard |
Standard |
Adaptive Cruise Control1 |
NA |
Available |
Available |
Enhanced Automatic Emergency Braking1 |
NA |
Available |
Available |
Automatic Seat Belt Tightening1 |
NA |
Available |
Available |
Reverse Automatic Braking1 |
NA |
Available |
Available |
Rear Pedestrian Alert1 |
NA |
Available |
Available |
Automatic Parking Assist with braking1 |
NA |
Available |
Available |
Rear Camera Mirror1 with washer |
NA |
Available |
Available |
HD Surround Vision1 |
NA |
Available |
Available |
Surround Vision Recorder1 |
NA |
Available |
Available |
Head-Up Display1 |
NA |
Available |
Available |
Night Vision1 |
NA |
Available |
Available |
1Safety or driver-assistance features are no substitute for the driverās responsibility to operate the vehicle in a safe manner. The driver should remain attentive to traffic, surroundings and road conditions at all times. Visibility, weather and road conditions may affect feature performance. Read the vehicle Ownerās Manual for more important feature limitations and information.
